A builder once poured a slab three inches off the grade the plans called for. Fixing it cost more than the survey would have in the first place. Stories like this happen more than people think, and almost always for the same reason: nobody checked the ground before the plans were drawn.

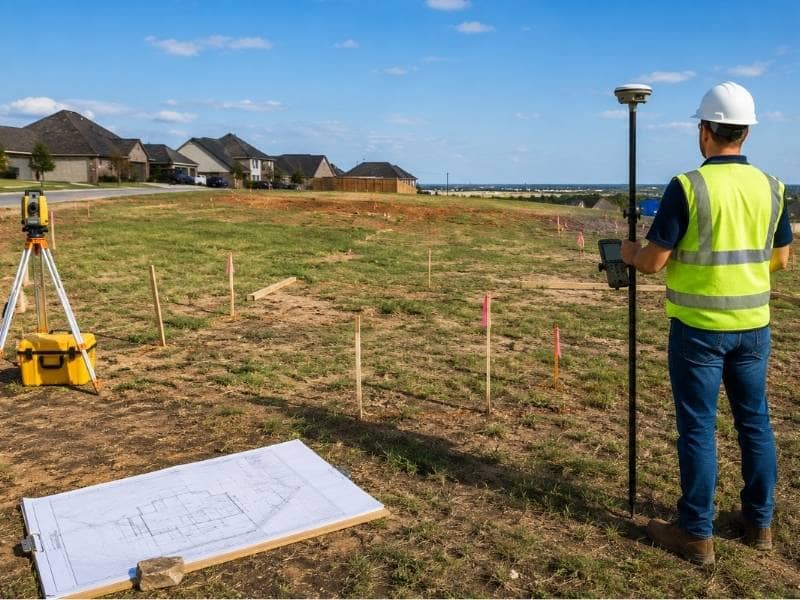

A topographic survey isn’t a formality tacked onto a construction file. It’s the first real look at what your land is doing before anyone breaks ground. Knowing when to order one, not just what one is, can save a project weeks and a good amount of money.

Site Conditions in Grand Prairie That Often Call for a Topo Survey First

Grand Prairie sits in the Blackland Prairie region of North Texas. The soil here runs heavy in clay, and clay like this moves more than people expect. It swells when the ground is wet and shrinks when it dries out, and that movement can throw off a foundation plan built on guesswork instead of real elevation numbers.

Most lots in this area look flatter than they are. A yard that seems level to the eye can still drop a foot or two across its width, enough to change how a foundation, driveway, or septic line needs to sit. A plat shows property lines. It doesn’t show ground elevation, existing trees, fence lines, or where the soil dips near a drainage easement.

Aerial imagery has a similar gap. Satellite photos give a decent general look at a property, but they weren’t built to measure elevation change to the degree a builder actually needs. If a lot has any slope, tree cover, or sits near a creek or drainage easement, a topo survey hands over numbers to design around instead of a guess based on how the ground looks from above.

Before the Architect Draws Plans: Why Sequencing the Survey Matters

Here’s where a lot of projects go sideways. An architect or engineer draws a full set of plans, and only after that does someone order a survey. Then the numbers don’t match what’s actually there, and the plans need rework.

Ground elevation should come first. An architect designing a home or an engineer laying out a commercial site needs real numbers on where the high and low points sit, where water already collects, and where existing structures or utility lines fall. Without that, they’re designing against a guess, not the property itself.

Getting the survey done before design starts also saves money on the design side. Redrawing a floor plan or grading plan after the fact costs more in fees than getting it right the first time. It comes down to a simple order of operations: measure the ground, then draw the plan, not the other way around.

Drainage and Runoff Planning for New Construction

Water follows the path of least resistance, and in Grand Prairie, that path can run straight toward a neighbor’s yard if nobody planned for it.

A topo survey shows exactly where the high points and low points sit on a property. Engineers use that data to figure out where runoff will go once a slab, driveway, or roofline gets added to the picture. A new structure changes how water moves across a lot. Grading that ignores this can send water toward a foundation, a fence line, or a neighboring property, and that problem shows up during the next hard rain, not on the day construction wraps up.

Flat lots are actually trickier than sloped ones in some ways. On a steep lot, water direction is obvious. On a flat one, small elevation differences of just a few inches decide where standing water collects. A topo survey catches those small differences before they turn into a drainage complaint.

Additions, Pools, and Accessory Structures on an Already-Developed Lot

People often assume the survey done when the house was built still covers everything on the property. That’s not always the case.

If you’re adding a room, putting in a pool, or building a shed or detached garage, the ground around your house may have changed since that original survey. Grading shifts over the years. Trees get removed. Drainage patterns change once a driveway gets extended or a patio gets poured. An old survey won’t reflect any of that.

A pool is a good example. Pool contractors need current elevation data to plan excavation depth, deck height, and where the equipment pad sits relative to drainage. Building without updated numbers risks a pool deck that doesn’t sit level with the yard, or backyard drainage that pools water against the house instead of away from it.

Room additions carry a similar risk. Tying a new roofline into an existing structure without checking current grade can create a low spot where water collects between the old house and the new addition.

What Can Go Wrong When Construction Starts Without One

Skipping a topographic survey doesn’t always cause a problem right away. Sometimes it takes a permit review, a failed inspection, or the first heavy rain to show what got missed.

A few things that come up when construction starts without accurate elevation data:

• Permit delays, because the city can’t verify grading matches what was submitted
• Foundation elevations that don’t match the surrounding grade, leading to water pooling against the house
• Redesign costs after a contractor discovers the ground doesn’t match the plans
• Drainage disputes with neighbors after runoff patterns change
• Retaining walls or extra fill dirt added late in the project to fix a grading problem that could’ve been planned for from the start

None of these are guaranteed to happen. But they show up often enough that skipping the survey is a gamble, not a shortcut. The cost of the survey itself is small next to fixing a foundation or grading problem after the concrete is already poured.
