More parking sounds simple. You just pave more ground. But new pavement changes how water moves across the site. Get the slope wrong and water pools where it should not. A topographic survey maps the ground first, so the new surface drains the right way. It shows the slopes and low spots you cannot judge by eye. With that map in hand, the design can guide water where it belongs.

Existing Pavement Elevations Set the Starting Point

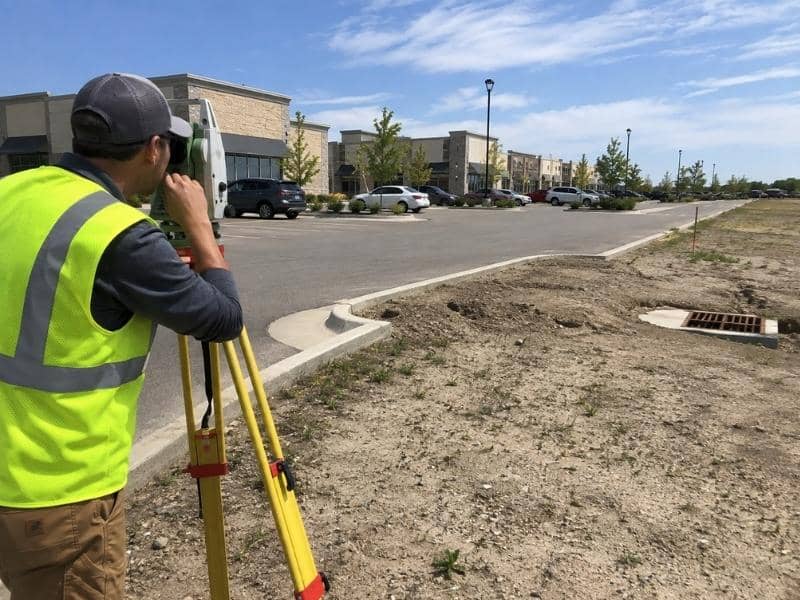

New paving has to meet the old at the right height. A topographic survey records the elevations of the current drives and lots. It shows how the existing surface rises and falls. Those numbers set the base for the new design.

Old pavement rarely sits perfectly flat. Years of traffic and repairs leave dips and high spots. The survey records those small changes across the surface. That detail helps the new lot meet the old without a rough seam.

A smooth join is more than looks. A lip or dip can trip people or trap water. It can also wear faster under traffic. Matching the grades keeps the surface safe and lasting.

A smooth lot also drains as designed. Water runs off instead of pooling in low spots. That protects the pavement and the cars on it. Good grades at the join pay off for years. A lot built on a solid base needs fewer repairs. It sheds water and wears evenly under traffic. That saves the owner real money over time.

Without them, the join can go wrong. A new lot that sits too high or low creates a lip or a puddle. Matching grades keeps the surface smooth and safe. The survey gives the design that starting line. From there, the new work fits the old cleanly.

Find Low Areas Before the New Surface Changes Runoff

Every site has spots where water already gathers. A topographic survey reveals those low areas on the map. Seeing them early helps the design steer water away. That keeps new parking from turning into a pond.

New pavement sheds water faster than bare ground. If the low spots are ignored, runoff can get worse. Mapping the current flow shows what the design must fix. That step protects both the lot and the land around it. Water problems are much cheaper to prevent than to repair.

Tie Parking Expansion Into Surrounding Site Features

New parking does not stand alone. It meets buildings, curbs, walks and landscaped areas. The survey maps these features so the new lot fits among them. That link keeps the expansion working with the site.

Drainage structures matter most here. Inlets and gutters already guide water on the site. The new lot should connect to that system, not fight it. Mapping these features helps the design tie in cleanly. A good connection keeps water moving where it should.

How Much Beyond the New Parking Area Should Be Surveyed?

The survey often needs to reach past the new lot. Water flows across lines, so nearby grades count. How far to go depends on the drainage and design needs. The engineer helps set that limit.

A survey that stops too soon leaves gaps. The design may miss where water comes from or goes. A slightly wider area up front costs less than a return trip. Setting the right limits early keeps the project smooth. It also spares the team a second mobilization.

Give the Civil Design Team a Current Existing-Conditions Model

Engineers need a current picture of the site to design well. A topographic survey gives them that existing-conditions model. It shows the ground, the pavement and the drainage as they are now. Fresh data leads to a design that works once built.

Old or partial data invites mistakes. A model that misses a slope or a drain sends the design off course. Current, complete data keeps the work on track. That accuracy pays off through the whole project.

Frequently asked questions

Does a topographic survey include an existing parking lot?

Yes, a topographic survey can map an existing parking lot in detail. It records the elevations across the drives and spaces. It also picks up curbs, inlets and other surface features. This gives the design team the current grades to build from.

Can topo data show where water currently collects?

Yes, topographic data reveals the low spots where water tends to gather. The contours and elevations show how the surface slopes. That helps the design steer runoff away from problem areas. Seeing this early prevents drainage trouble later.

Should adjacent pavement be included in a parking expansion survey?

Often yes, since water and access cross property and pavement lines. Nearby grades help the design tie the new lot in cleanly. The engineer helps decide how far the survey should reach. Including enough area avoids gaps in the drainage plan.

Who determines how much of the commercial site needs to be surveyed?

The engineer and surveyor set the scope together based on the design. Drainage needs and the size of the new work guide that choice. A clear scope keeps the survey focused and complete. This avoids both missing data and wasted effort.

Is a boundary survey also required when a parking lot is expanded?

It depends on how close the new work sits to the property lines. If parking nears a boundary, a boundary survey may be wise. A topographic survey shows grades, not legal lines. Your team can advise whether both are needed for the project.
