A truck yard needs far more room than the building on it. Construction surveying helps you get that layout right before it’s set in pavement. Trucks need space to turn, back up, and load, so the yard’s shape has to fit real movement. A layout that looks fine on paper can trap a trailer in the corner. Surveying takes the approved design and marks it out on the actual ground. That way, you catch problems while they’re still easy to fix.

Big paved areas hide a lot of detail. Small grade errors or a misplaced curb can cause real trouble later. So getting the survey work done first protects the whole project.

Truck Circulation Needs More Space Than the Building Footprint

Truck circulation needs much more space than the building itself. The warehouse or dock is just one piece. Around it, trucks require room to enter, turn, line up, and pull away. That paved operating area often dwarfs the building’s footprint. So the yard design has to account for all of it, not just the structure.

This is where careful layout pays off. A truck yard includes approaches, loading zones, and wide turning paths. Each one needs enough space, or the whole flow breaks down. A trailer that can’t complete a turn blocks everything behind it. So the design maps out these movement areas with real dimensions. Construction surveying then places them accurately on the ground. Getting the circulation space right is the difference between a yard that runs smoothly and one that jams up daily.

Turning Design Coordinates Into Field Locations

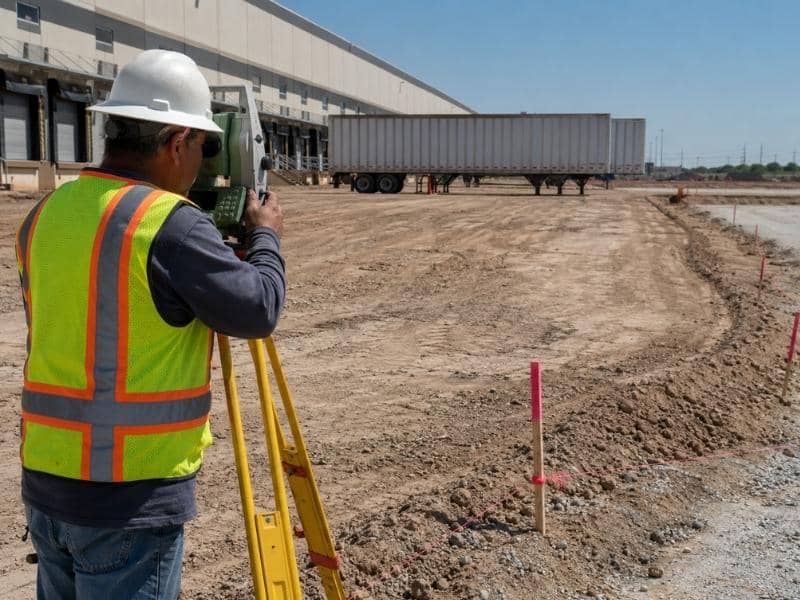

Construction surveying turns design coordinates into real locations on the ground. The plans hold precise coordinates for every part of the yard. But those numbers mean nothing until someone marks them in the dirt. That’s the surveyor’s job. They take the approved geometry and stake it out, so crews know exactly where each feature goes.

This step bridges the gap between paper and pavement. A design might call for a curb at a certain point, or a drainage structure at a set spot. The surveyor locates those points precisely, using the project’s control. So the crew builds to the plan, not to a rough guess. That accuracy keeps the finished yard matching the approved design. Without it, features drift out of place, and the careful planning falls apart on the ground.

What Needs to Be Staked Before Pavement Construction Begins?

Several things need staking before any pavement goes down. Once the paving starts, changes get expensive fast. So the surveyor marks the key features first, giving crews clear targets. This early layout sets up the whole yard for a clean build.

The staking usually covers the main geometry and the drainage. Curbs and paving limits show where the pavement begins and ends. Drainage structures mark where water will collect and leave. Loading areas and other planned features get located too, based on the project scope. So crews see the full plan laid out before they pour. This order matters. Staking first means the pavement lands exactly where it should, instead of being cut and patched later. It’s a simple sequence that saves a lot of rework.

Grade Control Matters Across Large Paved Surfaces

Grade control is critical across a big paved yard. On a wide surface, even small height differences add up. A slight dip can pond water, and a wrong slope can send it toward the building. So vertical layout, or grade control, keeps the whole surface draining the way it should. It’s just as important as the horizontal layout.

The surveyor sets grade points across the yard, guiding how the pavement slopes. These points tell the crew the right height at each spot. Over a large area, that guidance keeps the surface even and the drainage working. Miss it, and you get puddles, ice, or water running the wrong way. So grade control isn’t a minor detail in a truck yard. It shapes how the finished surface performs every day. Careful vertical layout is what keeps a big paved area smooth and dry.

How Can Survey Checks Support the Final Yard Configuration?

Survey checks support the final yard by confirming the work stays true to the plan. A truck yard is built in stages, and things can drift between them. A check at the right moment catches any drift early. So the surveyor returns during key phases to verify the layout before the next step locks in.

These checks keep later features consistent with the approved design. After grading, before paving, or as structures go in, a verification confirms everything’s in place. Say the drainage was set slightly off, a check flags it before the pavement covers it. That timing matters, since fixing an error under fresh concrete is costly. So the checks act as a safeguard throughout the build. They make sure the final yard configuration matches what was planned, from the first stake to the last pour.

Frequently Asked Questions

Why does a truck yard need more space than the building suggests?

Because trucks need room to enter, turn, line up, and load around the structure. That paved operating area is often larger than the building itself, so the layout must plan for full truck movement, not just the footprint.

What does construction surveying do for a truck yard layout?

It takes the approved design coordinates and marks them accurately on the ground. Crews then build curbs, drainage, and loading areas exactly where the plan intends, keeping the finished yard true to the design.

What should be staked before paving a truck yard begins?

Curbs, paving limits, drainage structures, and loading areas are typically staked first. Marking these before paving lets crews build to the plan, avoiding costly cutting and patching once the pavement is in place.

Why is grade control important on large paved areas?

Small height errors cause big problems on wide surfaces, like ponding water or wrong drainage. Grade control sets the correct slope across the yard, keeping the pavement even and moving water away from the building.

When should survey checks happen during truck yard construction?

Checks work best at key phases, like after grading, before paving, and as structures go in. These verifications catch any drift early, so the final yard matches the plan before each step is permanently built.
